คำอธิบาย
TurtleBot คืออะไร ?

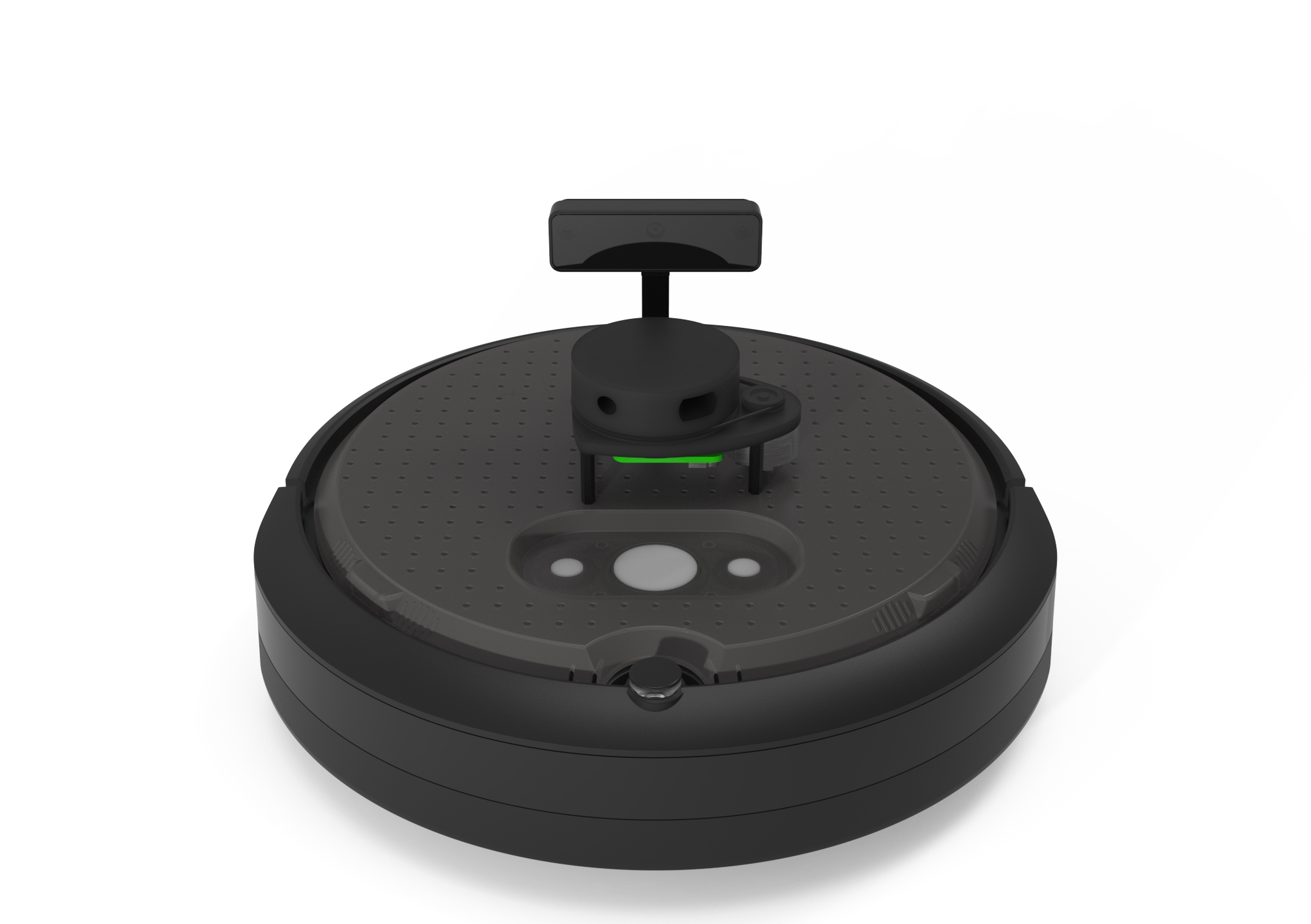

TurtleBot4 unmanned car intelligent robot autonomous navigation ROS2 open source system SLAM เป็นชุดหุ่นยนต์ ราคาประหยัดพร้อมซอฟต์แวร์โอเพ่นซอร์ส TurtleBot ถูกสร้างขึ้นที่ Willow Garage โดย Melonee Wise และ Tully Foote TurtleBot4 สามารถสร้างแผนที่ในแบบ 3 มิติ
TurtleBot4 ที่ผลิตออกจำหน่ายมีสองรุ่นได้แก่ TurtleBot4 Standard และ TurtleBot4 Lite
Both are based on iRobot Create3 education A better OAK camera and one with access to user power and The mounting board of the USB port allows easy integration of payloads and accessories.
GET STARTED FAST
TurtleBot 4 will be pre-installed with ROS 2.0, easy for users to carry out SLAM and AI
SENSOR PACKED
- Integrated Sensors
- Including OAK-D Camera
- 2D lidar
- IMU
- Optical floor tracking sensor
- Wheel Knitting
- The ROS 2 API connected via the network is used as ROS.
Feature | TurtleBot 4 Lite | TurtleBot 4 |
---|---|---|
Size (L x W x H) | 342 x 339 x 192 mm | 342 x 339 x 351 mm |
Weight | 3270 g | 3945 g |
Base platform | iRobot® Create® 3 | iRobot® Create® 3 |
Wheels (Diameter) | 72 mm | 72 mm |
Ground Clearance | 4.5 mm | 4.5 mm |
On-board Computer | Raspberry Pi 4B 4GB | Raspberry Pi 4B 4GB |
Maximum linear velocity | 0.31 m/s in safe mode, 0.46 m/s without safe mode | 0.31 m/s in safe mode, 0.46 m/s without safe mode |
Maximum angular velocity | 1.90 rad/s | 1.90 rad/s |
Maximum payload | 9 kg | 9 kg |
Operation time | 2h 30m – 4h depending on load | 2h 30m – 4h depending on load |
Charging time | 2h 30m | 2h 30m |
Bluetooth Controller | Not Included | TurtleBot 4 Controller |
Lidar | RPLIDAR A1M8 | RPLIDAR A1M8 |
Camera | OAK-D-Lite | OAK-D-Pro |
User Power | VBAT @1.9A 5V @ Low current 3.3V @ Low current |
VBAT @ 300 mA 12V @ 300 mA 5V @ 500 mA 3.3v @ 250 mA |
USB Expansion | USB 2.0 (Type A) x2 USB 3.0 (Type A) x2 |
USB 2.0 (Type A) x2 USB 3.0 (Type A) x1 USB 3.0 (Type C) x4 |
Programmable LEDs | Create® 3 Lightring | Create® 3 Lightring User LED x2 |
Status LEDs | – | Power LED Motors LED WiFi LED Comms LED Battery LED |
Buttons and Switches | Create® 3 User buttons x2 Create® 3 Power Button x1 |
Create® 3 User buttons x2 Create® 3 Power Button x1 User Buttons x4 |
Battery | 26 Wh Lithium Ion (14.4V nominal) | 26 Wh Lithium Ion (14.4V nominal) |
Charging Dock | Included | Included |
