คำอธิบาย
16MP Auto-focus กล้องอุตสาหกรรม Industrial USB Camera Autofocus Camera
ข้อมูลด้านเทคนิค
|
Model |
USB16MP
68 Degree Autofocus USB16MP01-KAF68 |
|
|
Sensor |
SONY IMX298 เซ็นเซอร์ขนาดใหญ่ ดีกว่าในสภาวะแสงน้อย |
|
|
SensorSize |
1/2.8 inch |
|
|
PixelSize |
1.12um |
|
|
ImageArea |
6.4mmx5.3mm |
|
|
Max. Resolution |
4656(H) X3496(V) 16 Megapixel |
|
|
Compression Format |
MJPEG/ YUY2 (YUYV) |
|
|
Resolution & Frame Rate |
4656 x3496 MJPEG@ 10fpsYUY2@ 1fps 4160 x3120 MJPEG@ 10fpsYUY2@ 1fps 3840 x2160 MJPEG@ 10fpsYUY2@ 1fps 2592 x1944 MJPEG@ 10fpsYUY2@1fps 2048 x1536 MJPEG@30fpsYUY2@ 1fps 1600 x1200 MJPEG@30fpsYUY2@5fps 1280 x720 MJPEG@30fpsYUY2@ 10fps 800 x600 MJPEG@30fpsYUY2@ 15fps |
4208 x3120MJPEG@ 10fpsYUY2@ 1fps 4000 x3000MJPEG@ 10fpsYUY2@ 1fps 3264 x2448MJPEG@ 10fpsYUY2@ 1fps 2320 x1744MJPEG@30fpsYUY2@ 1fps 1920 x1080MJPEG@30fpsYUY2@5fps 1280 x960MJPEG@30fpsYUY2@ 10fps 1024 x768MJPEG@30fpsYUY2@ 10fps 640 x480MJPEG@30fpsYUY2@30fps |
|
Min Illumination |
0.5 Lux |
|
|
Shutter Type |
Electronic Rolling Shutter/ Frame Exposure |
|
|
Connecting Port Type |
USB 2.0 High Speed |
|
|
Free Driver Protocol |
USB Video Class( UVC) |
|
|
AEC |
Support |
|
|
AWB |
Support |
|
|
AGC |
Support |
|
|
Adjustable Parameters |
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, WhiteBalance,BacklightContrast,Exposure |
|
|
LensParameter |
AF LENS Focus: 3.2mm, DF OV: about 78 Degree, HF OV: about 68 Degree |
|
|
Power Supply |
USB BUS POWER 4P-2.0mmS ocket |
|
|
Operating Voltage |
DC5V |
|
|
WorkingCurrent |
150mA~280mA |
|
|
Working Temperature |
-10~70C |
|
|
Storage Temperature |
-20~85C |
|
|
BoardSize/Weight |
38X38mm (Compatible 32X32mm) / about 30g |
|
|
Cable |
Standard 1m/ Optional 2m, 3m,5m |
|
|
OperatingSystemRequest |
WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc. LinuxwithUVC(aboveLinux-2.6.26) MAC-OSX10.4.8 orlater Android 4.0 or above with UVC |
|
ในชุดประกอบด้วย
- กล้องอุตสาหกรรม Industrial Camera USB 16MP IMX298 Autofocus (No distortion lens)
- สาย USB 3M cable

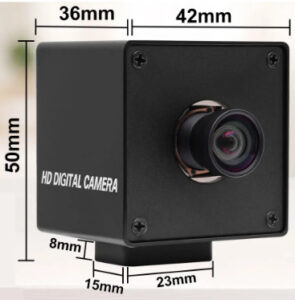

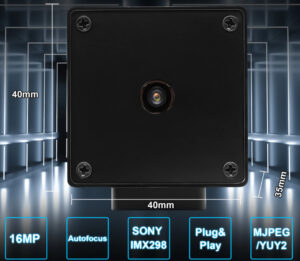

Diemension
- Mini Casing
ในชุดประกอบด้วย
- กล้องอุตสาหกรรม Industrial Camera USB 16MP IMX298 Autofocus (No distortion lens)
- สาย USB 3M cable
Vision Development UVC Industrial Camera USB Cameras SDK for reference
- SDK for Windows System
- SDK for Android System
- SDK for Linux System
- SDK for H.264 USB Cameras in Linux System
- Software CiRA CORE, CiRA CORE, CiRACORE
USB16MP01-KAF68
