SGCO10 เซนเซอร์ก๊าซคาร์บอนมอนอกไซด์ Carbon Monoxide (CO) Gas Sensor CO-AF

คำอธิบาย

COAF, CO-AF, Industrial Carbon Monoxide (CO) Sensor for use in portable and fixed gas detectors

Performance

• Range 5,000ppm
• Sensitivity 55 – 90nA/ppm in 400ppm CO
• Response time t90 < 25s from zero to 400ppm CO
• Resolution < 0.5 RMS noise (ppm equivalent)
• Temperature range -30 to 50°C
• Pressure range 80 to 120 kPa
• Humidity range 15 to 90% rh continuous

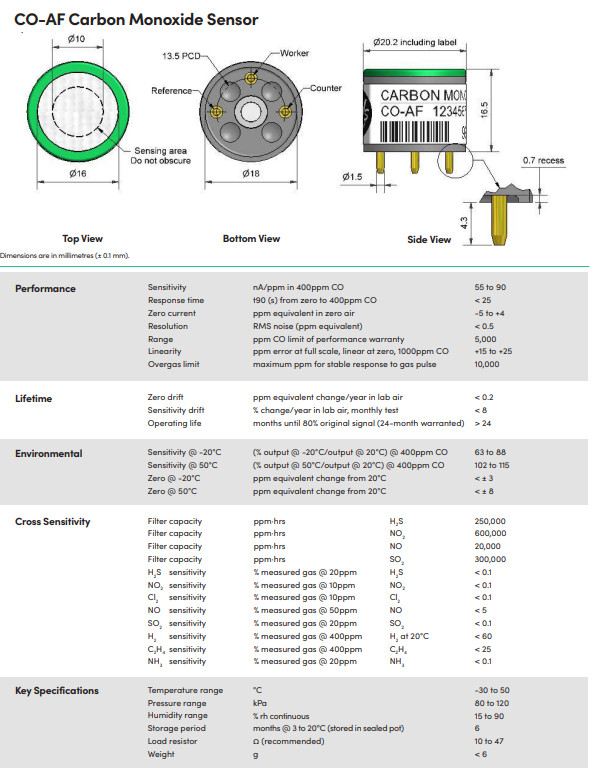

Dimension

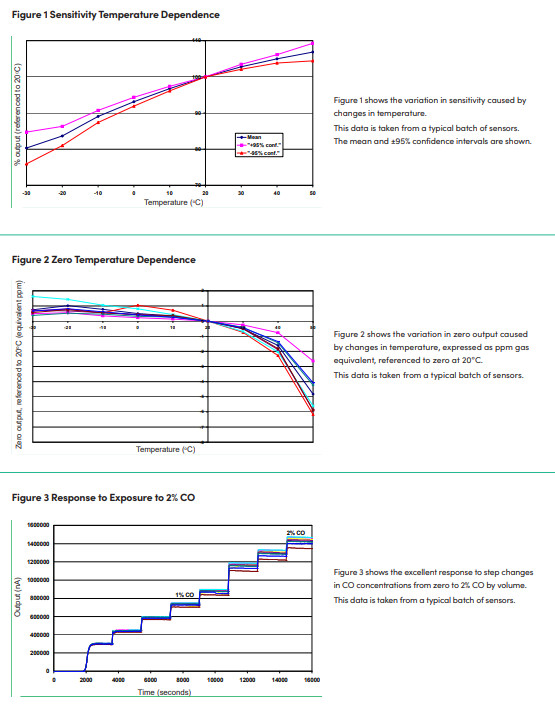

Datasheet

• https://www.alphasense.com/wp-content/uploads/2017/09/COAF.pdf
